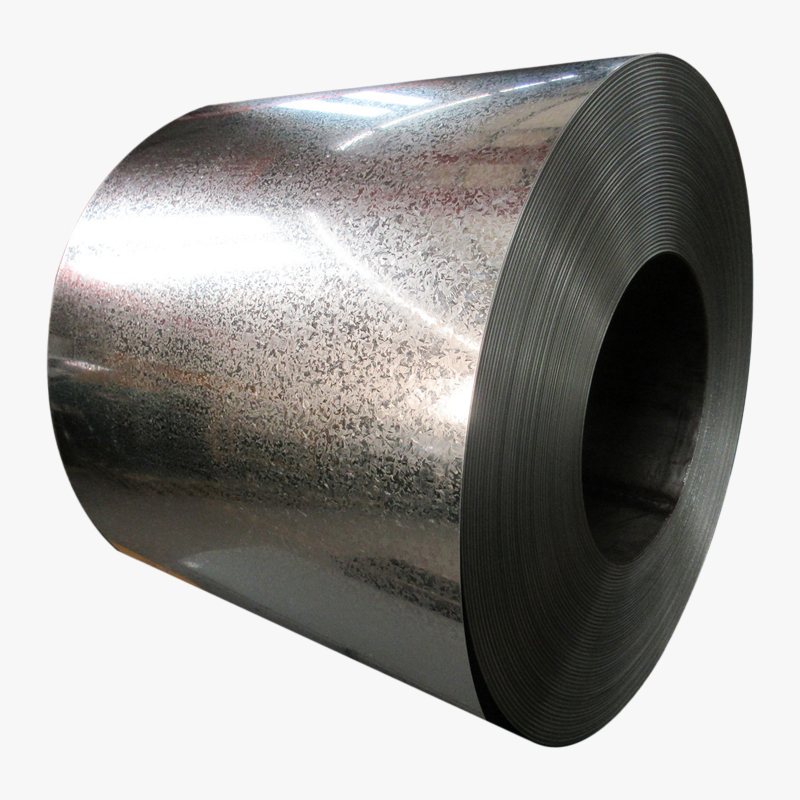

Galvanized

Galvanizing is a metal coating process that applies a protective zinc layer to steel or iron substrates to prevent corrosion through sacrificial anode protection. Common methods include hot-dip galvanizing(immersing steel in molten zinc) and electro-galvanizing(electrolytic zinc deposition). Galvanized steel combines the strength of steel with zinc’s anti-corrosive properties, widely used in construction, power transmission towers, automotive parts, pipelines, and outdoor infrastructure.

Types of surface:Regular Spangle & Zero Spangle

Common Features

Same Base Material: High-quality cold-rolled steel with excellent formability and strength.

Zinc Coating: Standard zinc layer (e.g., 60g/㎡) for basic corrosion protection.

Differences

Appearance: Spangle has visible zinc crystal patterns for aesthetics, while non-spangle offers a smooth finish for further processing.

Applications: Spangle suits architectural and appliance uses; non-spangle is preferred for automotive and precision engineering.

Important information:

•Standard: ASTM / AISI / BS / DIN / JIS / GB etc.

•Thickness:0.12mm-4.0mm

•Width:600mm-1500mm

•Zinc Coating:40g/㎡-275㎡

•Base metal: Cold Rolled Steel Coils

•Surface Treatmentl: Chromated,skinpass,oiled,slight oiled,dry,anti-finger print
